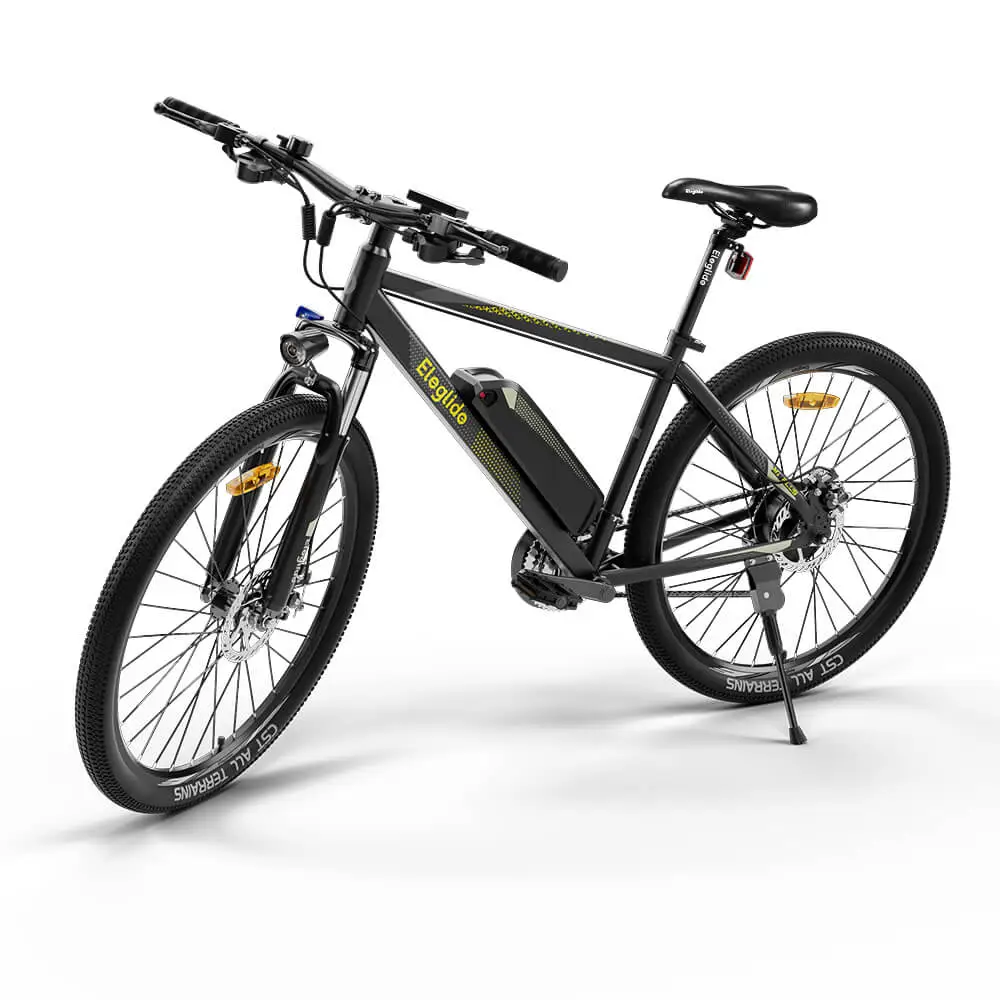

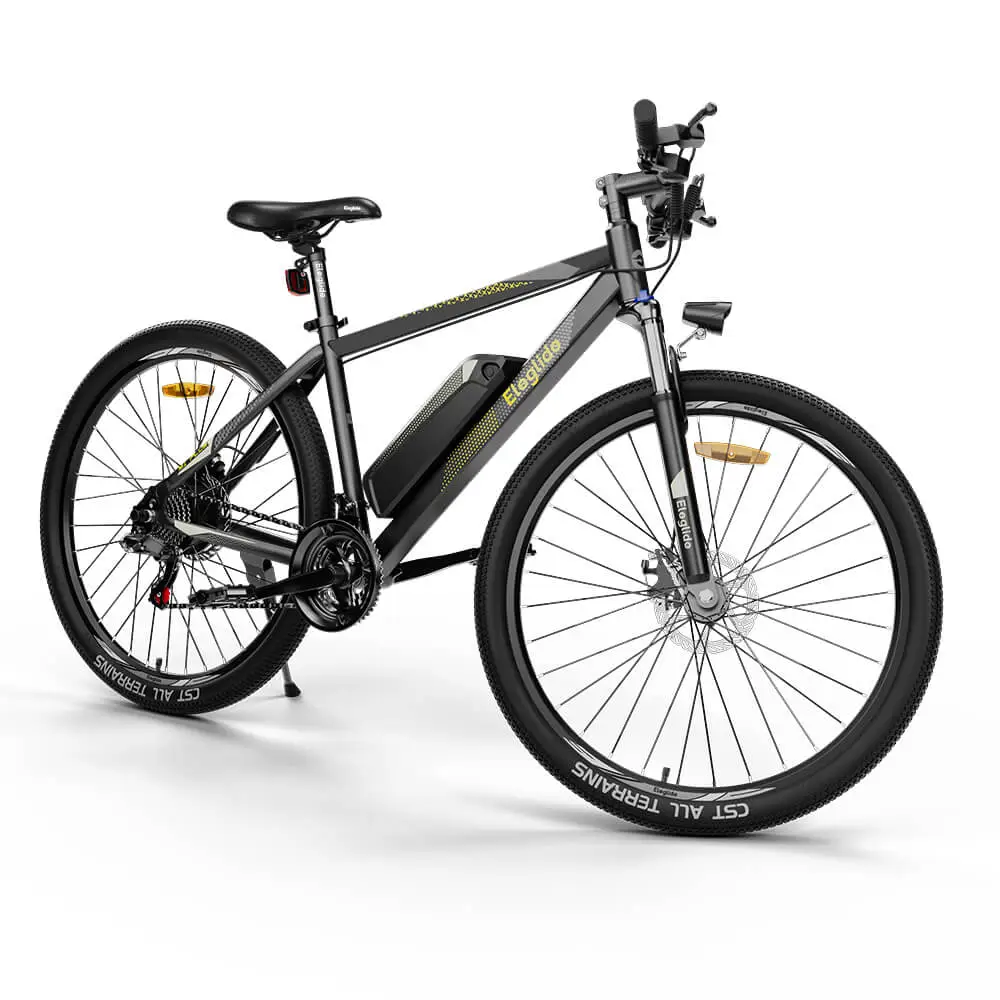

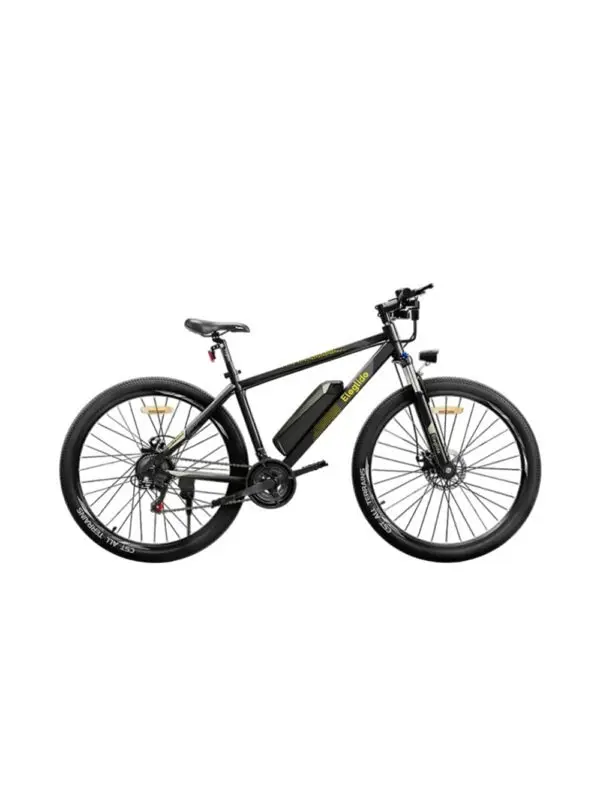

Eleglide M1 Plus

App Connectivity

250W 36V, 400W (Max Inst. Power) XOFO Motor

210 Max RPM
45N.m Max Output Torque

25 km/h

13Ah, 36V, 450Wh, with Battery Protection System
About 7 hours charging via 100-240V 2A (Input), 42V 2A (Output)

100km (Assist Mode), No Limit (Manual Mode)
The max range is achieved with a 75kg load and a constant speed of 15km/h on flat roads without strong winds at 26°C

Cadence Sensor

5 Levels of PAS: 12/16/20/23/25kmph

Walk Mode: 6kmph

1.75″ Intelligent LCD Display

App Control

15°

IPX4

Sent Separately

Mechanical Disc-160mm Rotor

21 Speed Shimano Gear (Front 3, Rear 7)

Hydraulic with Lockout-100mm travel

Not included

None

Headlight: LED, 1.65W, 20° (Beam Angle), 0.5 ㎡ (Irradiated Area)

Mechanical Bell

Chain Plate: 42T 34T 24T

Aluminum Alloy

M (27.5”)

-27.5×2.1″ CST Pneumatic Rubber Tires

-Tire Pressure: 45-65PSI

-Best Tire Pressure: 50PSI (Front Tire), 55PSI (Rear Tire)

L (29”)

-29×2.1″ CST Pneumatic Rubber Tires

-Tire Pressure: 45-65PSI

-Best Tire Pressure: 50PSI (Front Tire), 55PSI (Rear Tire)

M (27.5”) – 100kg

L (29”) – 120kg

M (27.5”)

-21.7KG (N.W.)

-27KG (G.W.)

L (29”)

-22.8KG (N.W.)

-29.8KG (G.W.)

M (27.5”) – Height of Saddle (From The Ground): 850-1050mm (33.5″-41.5″)

L (29”) – Height of Saddle (From The Ground): 870-1050mm(34.3″-41.5″)
